QR Mobile Data equipment tracking
Track nearby equipment with Bluetooth tags and worker smartphones
Attach a Bluetooth Low Energy tag to equipment. A configured phone can record nearby detections and report them for location and use tracking, subject to tag range, phone settings, permissions, and connectivity.
Collect nearby equipment detections with a worker's phone

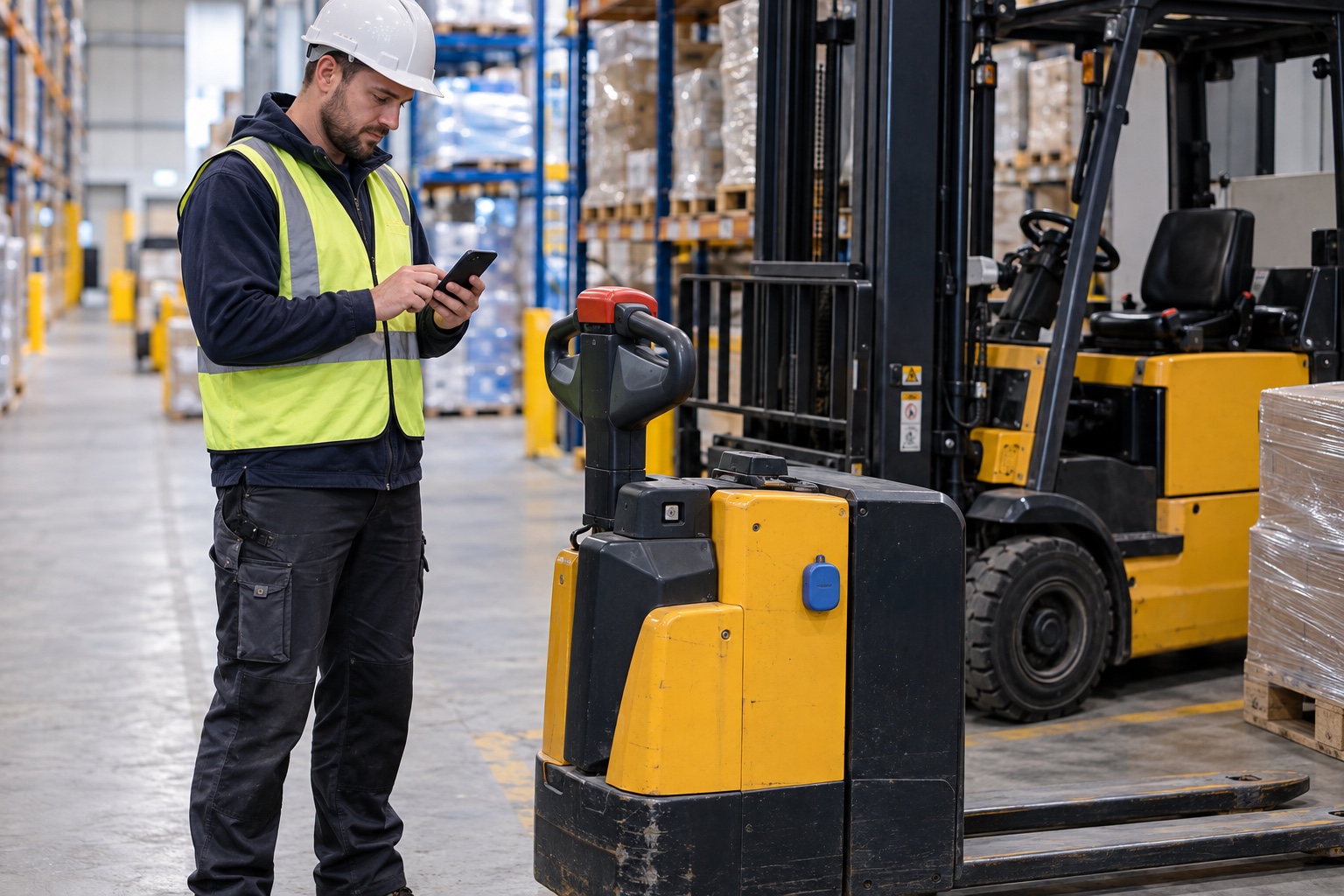

Attach a Bluetooth Low Energy tag to an electric pallet jack, forklift, field tool, or other equipment. When a worker carrying a configured smartphone comes within range, the app can collect a nearby detection in the background.
The tag does not send a GPS position. The record uses the detecting phone, available phone context, and time to report where the tagged equipment was seen and how it may have been used.
Turn tag detections into usable equipment records
A BLE tag broadcasts its identifier over a short range. The configured app listens for that broadcast, connects the detection with available worker, location, project, and time details, and sends the collected record when connectivity allows.
- 01BLE tag broadcastsThe equipment tag sends its identifier over Bluetooth Low Energy.
- 02Nearby phone detectsA configured worker phone sees the tag within its usable range.
- 03App collects the eventThe app records the detection with available phone context and time.
- 04Record is sent when connectedConnectivity affects when the collected event reaches the server.
- 05Manager reviews reportsUse collected detections to review location, use, worker, project, and time.
Know what Bluetooth tracking can and cannot show
Bluetooth tracking can show that a configured phone detected a tag nearby. Depending on the setup, that event can support a reported location, worker, project, start time, end time, or duration.
A basic BLE tag does not know its own location, and a missing detection does not prove the equipment was absent. Results depend on worker phones being present, the app running as configured, phone permissions, tag range, battery condition, coverage, and connectivity.
- Bluetooth Low Energy
- A short-range tag broadcasts an identifier for nearby configured phones to detect.
- Nearby detection
- The record shows that a detecting phone saw the tag within usable range.
- Depends on a configured phone
- No phone, permissions, app coverage, or collected event means no new phone-based report.
- GPS tracker
- A separate tracking device uses its own location hardware and communication method.
- Wide-area position
- GPS is a different fit when equipment must determine and report position independently.
Review equipment use by worker, location, project, and time
Collected detections can support reports by the worker carrying the phone, reported location, project, equipment item, date, and time. A team can review when equipment appeared near a worker's phone and the duration calculated from available events.
Treat these as operational records built from detections. Confirm the data fields, event rules, gaps, and report meaning before using them for billing, payroll, safety, or another decision that needs separate controls.
Plan phone coverage, permissions, tag range, and connectivity
Walk the warehouse, service yard, or job site before rollout. Confirm which workers carry compatible phones, where the app should run, which phone permissions are required, and where tags can be mounted without damage or blocked radio signals.
Test tag range around racks, machinery, vehicles, walls, and outdoor areas. Check background app behavior, phone battery settings, tag batteries, worker training, network gaps, and how the office will handle missing or late records.
Choose Bluetooth or GPS for the tracking job
BLE can fit equipment that regularly comes near workers carrying configured smartphones. It uses small tags and the phones already moving through the work area to collect nearby detections.
GPS is a different choice for trailers, vehicles, or equipment that must determine a wide-area position and report without a worker's phone nearby. Start with the travel pattern, reporting interval, environment, battery plan, and accuracy the job truly needs.
Questions from the job
Frequently asked questions
How does Bluetooth equipment tracking work with a smartphone?
A Bluetooth Low Energy tag broadcasts nearby. A configured worker phone can detect the tag and send the collected detection, phone context, and time to the system for reporting.
Does a Bluetooth tag know its own location?
No. A basic BLE tag broadcasts an identifier; it does not determine its own location. Reported location depends on the detecting phone, app settings, permissions, range, coverage, and collected records.
Is Bluetooth equipment tracking the same as GPS tracking?
No. BLE supports nearby detection through configured phones. GPS equipment trackers determine wide-area position with their own location hardware and are a different fit for equipment that must report independently.
